DESCRIPTION

Basic Info

Model NO.	PEC-1218P
After-sales Service	24-Hour Online Service
Warranty	1 Year
Application	Advertising Industry
Cooling System	Water Cooling
Technical Class	Continuous Wave Laser
Applicable Material	Nonmetal
Structure Type	Gantry Type
Laser Classification	Fluid Laser
Laser Technology	Laser Vapor Cutting
Max. Output Power	400 Watts / 600watts
Working Area	1200 × 1800mm
Cutting Speed	7-12mm/S
Cutting Accuracy	0.1mm
Servo Motor	Leadshine
Cooling Method	Water Cooling
Focus Mode	Auto Focus Adjustment
Screw Guide	Taiwan Tpi
Chill Power	1.3kw
Exhaust Fan Power	1.1kw
Machine Power	10kw
Power Supply	220V
Floor Space	4500*4500mm
Support Image Format	Dst,Ai,Plt
Transport Package	Professional Wooden Case
Specification	173*170 *76cm
Trademark	Perfect Laser
Origin	Wuhan China
HS Code	8456110090
Production Capacity	5000PCS Per Year

Product Description

Perfect Laser-180w 260w 300w 400 Watts Flat Carton Cardboard Box Paper Craft Label Sticker Wood Plywood MDF Die Board Laser Cutters Pressing Cutting Machines Price

(Model:PEC-1218P)Contact:Crystal

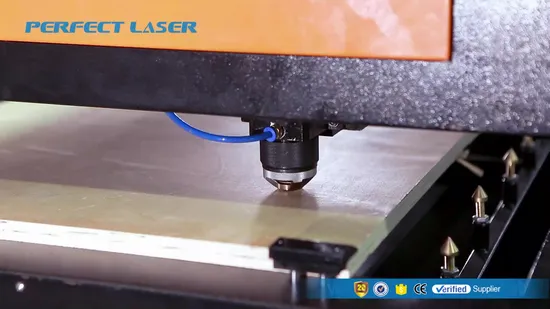

Description:Perfect Laser has launched a fully automatic single head Die Board Laser Cutting Machine for the packaging and mold industry. It can cut 20-25mm thick wooden die board at a time with its powerful laser source.
Compared to traditional sawing machine's cutting, the advantages of this wooden laser die board cutting machine are obvious. The working area is 1200×1800mm, the speed is 7-12mm/second, the cutting thickness of this laser die board cutting machine can reach up to 25mm, which can greatly improve the production efficiency.
The wood die cut machine is easy to operate and the knife gap is even. It is an upgraded version of the double-head coaxial laser die board cutting equipment.

Applied Field:

1.Applicable materials:

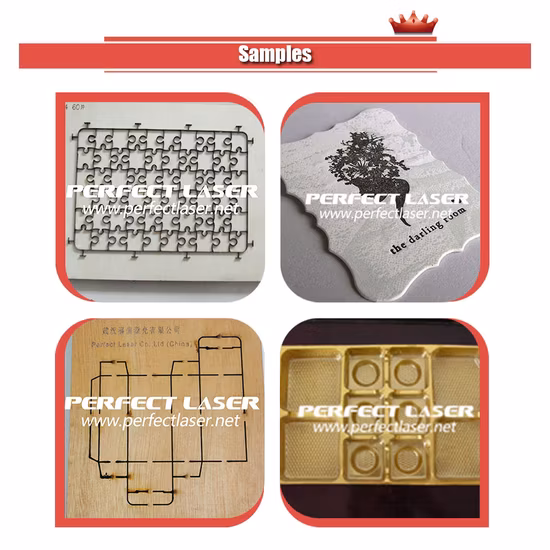

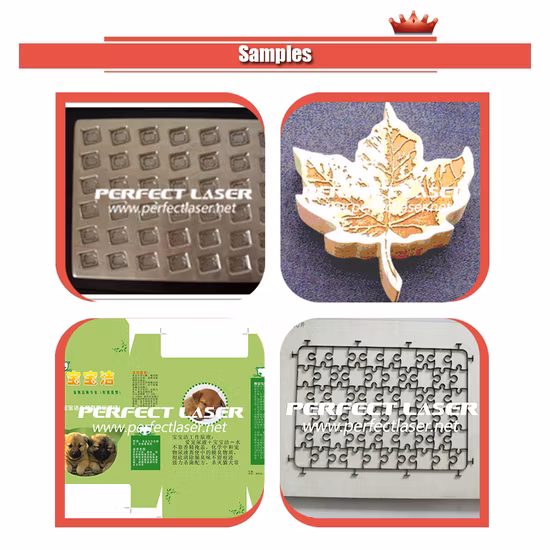

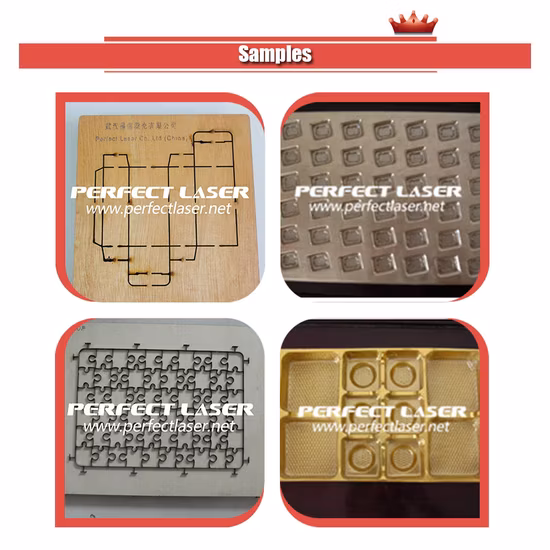

The laser die board cutting machine is mainly used in the cutting of 20-25mm thick die board, wooden plate, MDF, bamboo, 10-20mm acrylic sheet, plexiglass, 1-3mm carbon steel or iron plate.

2.Applicable industry:
The laser die board cutting machine is mainly used in the die mold and packaging industry.

Features:

1. The body of our laser die board cutting machine is welded with square steel pipe with 1.7 tons weight, so it is durable and not easy to deform.
2. The spark is very small during operation and the laser die board cutting machine is configured with an exhaust fan to suck off the smoke.
3. The working precision of our laser die cutting equipment is 0.1mm, so the cutting error is small and the precision is high.
4. This laser die board cutting machine adopts arrow-shaped copper column working platform. Compared to the ordinary flat platforms, it can not only reduce the support resistance but also can reduce the blackening of the cutting surface because of the copper column's better reflection effect of the laser.
5. The laser die board cutting machine adopts fixed optical path instead of the cutting head, the X-axis and Y-axis platform can move when cutting. The laser die board cutting equipment can cut through the wooden board at a time and the cutting slit is evenly straight.

Technical Parameters:

Product Name	Laser Die Board Cutting Machine
Model	PEC-1218P
Laser Tube	CO2 sealed glass tube × 3 pcs
Max. Output Power	400 Watts / 600Watts
Working Area	1200 × 1800mm
Cutting Speed	7-12mm/s
Cutting Thickness	20-25mm wooden die board,MDF 10-20mm acrylic sheet, 1-3mm carbon steel,Iron
Cutting Accuracy	0.1mm
Servo Motor	Chinese Top brand: Leadshine 1.5KW × 2pcs
Knife Slit	0.45mm/0.71mm/1.07mm(adjustable)
Cooling Method	Water cooling
Focus Mode	Auto focus adjustment
Screw Guide	Taiwan TPI
Chill Power	1.3KW
Exhaust Fan Power	1.1KW
Machine Power	10KW
Power Supply	220V
Floor Space	4500 × 4500mm
Support Image Format	DST,AI,PLT
Warranty	12 months for whole die board laser cutting machine, 10 months for laser tube

Recommended by seller

Our Services:

* 2 year guarantee for main machine (People damaged are charged).* Full technical support by e-mail, call and video* Lifelong maintenance and spare parts supply.* Free design of fixtures as customers required.* Free training installation and operation for the staffs.

FAQ:

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Questions

1. What's your cutting thickness? such as 16mm, 18mm, 20mm, 25mm

2. What power you prefer? such as 300w, 400w, 1000w

3. Is the machine urgent for you? if urgent, we will make early arrangement for you in advance. Pls kindly advise.
